[DC] Unified Computing Systems ( UCS )

UCS Physical Infrastructure

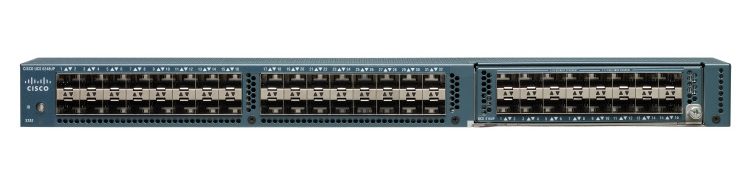

  •  Fabric Interconnect  ( 6248UP )
    • 32x Fixed unified ports: 1/10 GE or 1/2/4/8 FC
    • Expansion Module
    • Run in an Active / Active state for the dataplane
    • Run in a clustered Active/Passive state for the management
    • Connected to the UCS Chassis
    • Managed via UCSM or Cli (NX-OS)

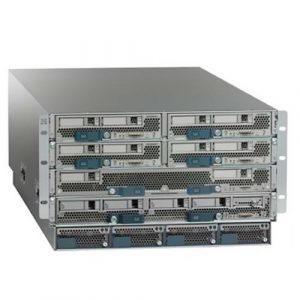

  •  UCS Chassis
    • 6U Chassis, 32″Deep
    • Passive backplane
    • 8x Half width blades
    • 4x Full width blades
    • Everything is managed by the Fabric Interconnects.

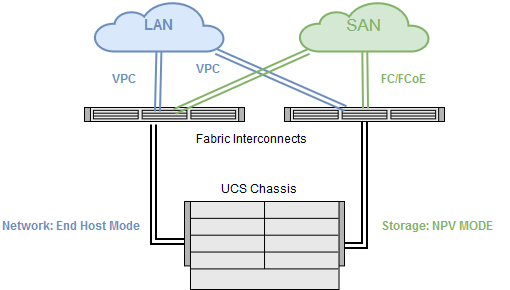

Connecting the Fabric Interconnects to the LAN and SAN:



UCS Stateless Computing

  • Step 1)
    •  Pools
      • UUID
      • MAC
      • WWNN / WWPN
    • Policies
      • Boot Devices / Order
      • Host F/W
      • QoS
    • Templates
      • vNics
      • vHBAs
  • Step 2)
    • Templates:
      • MAC: Derived
      • WWN: Derived
      • Firmware: 2.1
      • BOOT: SAN
  • Step 3)
    • Service Profile from template
